SOLA 3 electronic locks are ideally suited for both new and retrofit applications where a cam lock would normally be used such as locker doors, cabinets and drawers.

The SOLA 3 is stylish, highly-featured and competitively priced to offer great value for money. Its style and aesthetics compliments any modern furniture being used for front of house applications, be it in a corporate setting, healthcare, leisure or hospitality. SOLA 3 helps secure confidential company information, stock or personal belongings with ease by eliminating key management problems and enhancing the highly featured overall user experience. Benefits include a reduction in facilities management costs and greater efficiency and control of storage units.

Interface

Front Unit

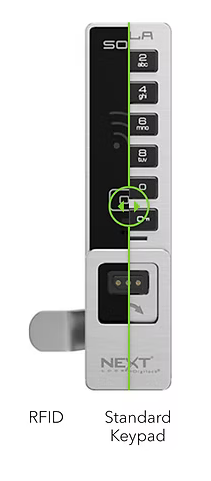

Standard Keypad:RFID

Sola locks operate with an alphanumeric keypad interface.key managed Locks also contain a key slot to operate locks with an ADA complaint user key.

Power | 2 CR2450 or 4 AA Batteries

Providing battery life of 180,000 cycles for keypad & 54,000 cycles for RFID.*

*Based on average usage.

Body Style

Front Unit

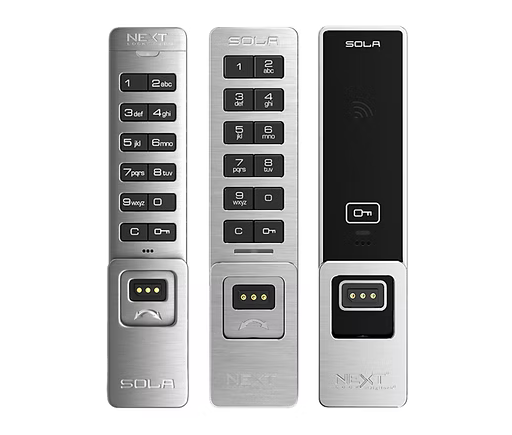

Finish | Brushed Nickel:Black

Standard finishes of brushed nickel and black.
Custom finishes are available upon request.

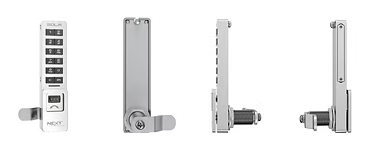

Body | Vertical : Horizontal

Available in vertical and horizontal body styles

Key Management

Patented electronic keys offer external power, audit and override capabilities for A credible management system that significantly enhances productivity and reduces cost

Retrofit

Using existing third party custom plugs and locking mechanisms, SOLA locks can easily retrofit existing mechanical cam locks on furniture, cabinets and lockers to eliminate use of mechanical keys whilst retaining the existing furniture to save both capital and operating cost and increasing efficiency, access control and management. Retrofitting can be achieved by following a 3-step replacement process.

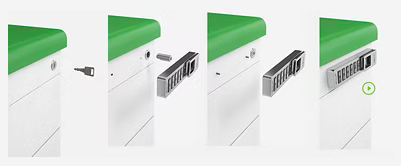

3-Step Retrofit Process

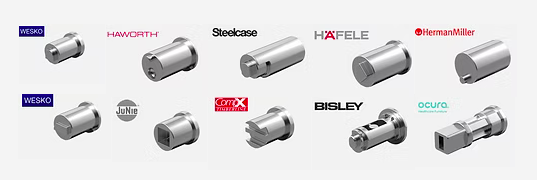

Remove core from existing mechanical lock, place manufacturers’ specific plug inside of lock cylinder, and secure Sola with two mounting screws. Current compatible third party locks are shown below.
